PunchMaster Plate Making System

- Complete with wide strip casting

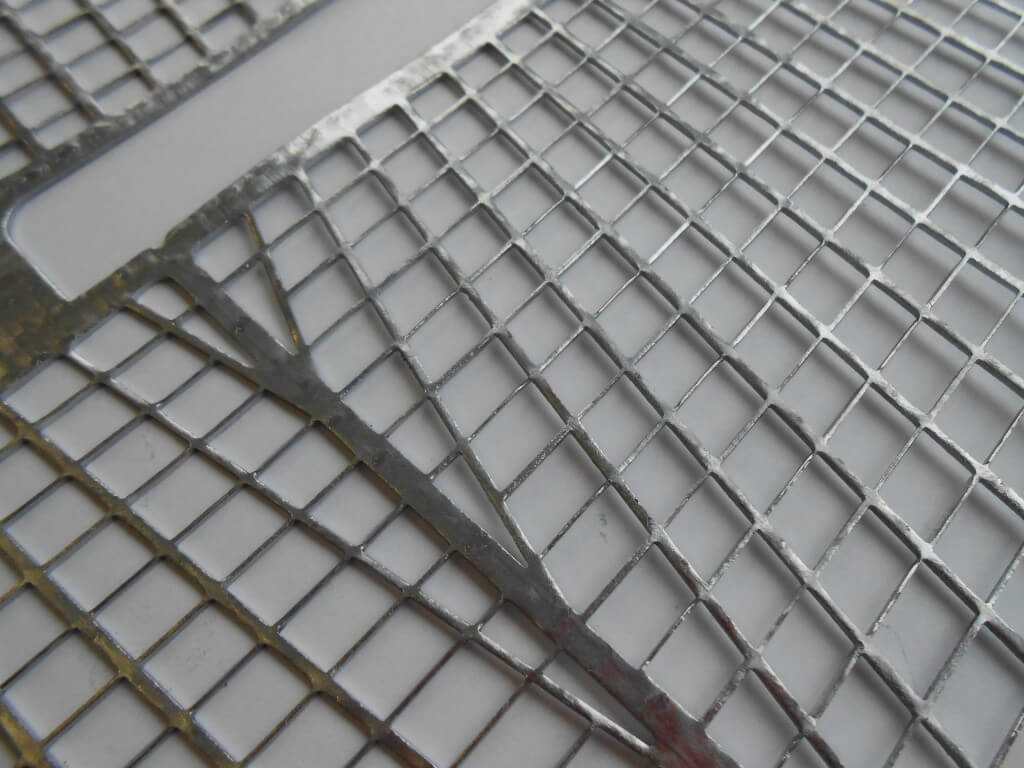

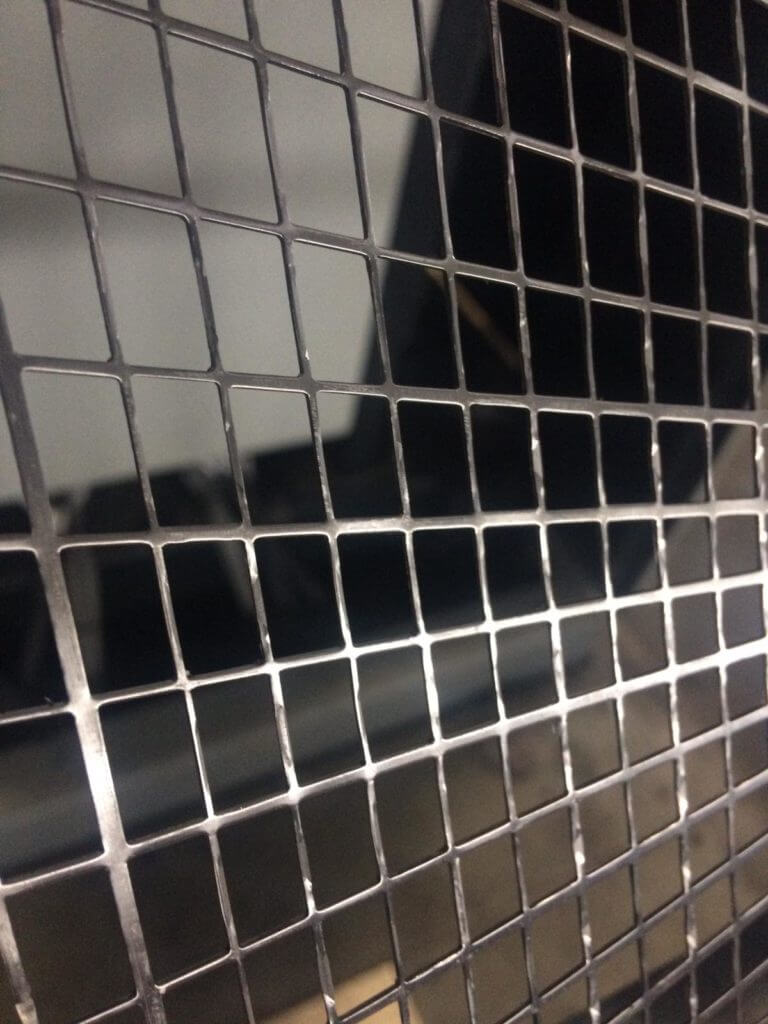

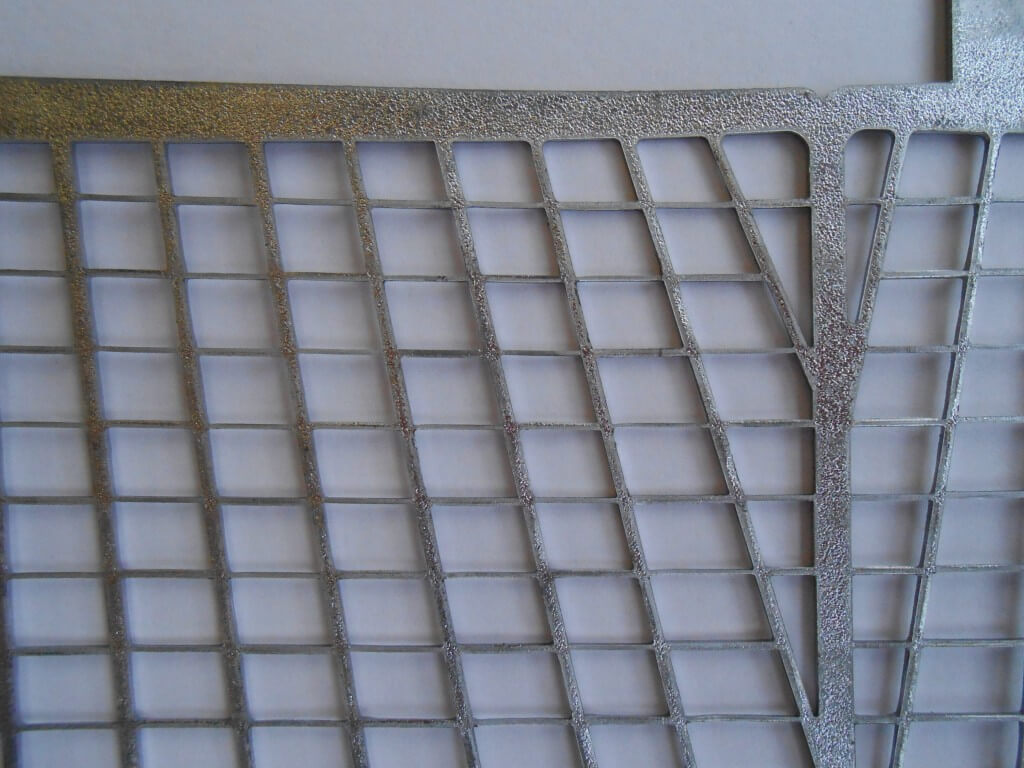

The PunchMaster line is dedicated to high speed production of punched lead grids for both automotive and industrial batteries. The evolution of this system is explained in the documents entitled ‘Innovation in continuous grid manufacturing’ which is available as a download on this product page.

The whole line was designed to fit the following specifications:

Lead strip thickness from 0.72mm to 1mm

Lead strip width up to 300mm

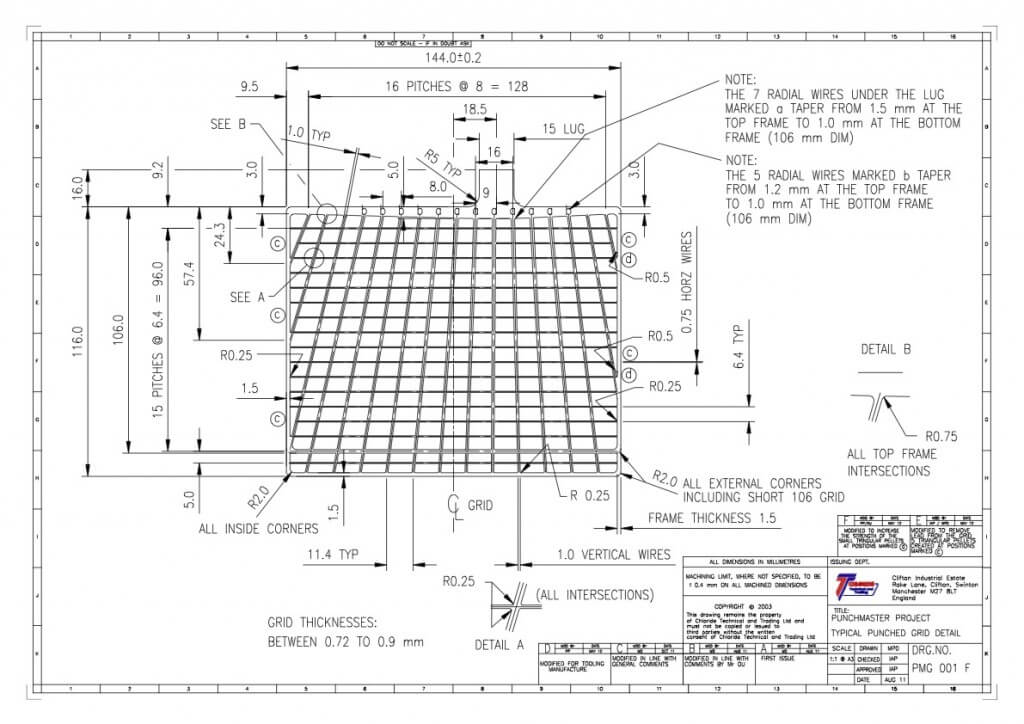

Production capacity of 360 grids/min (for 144mm grids with laminated strip)

No lubrication required when using laminated strip

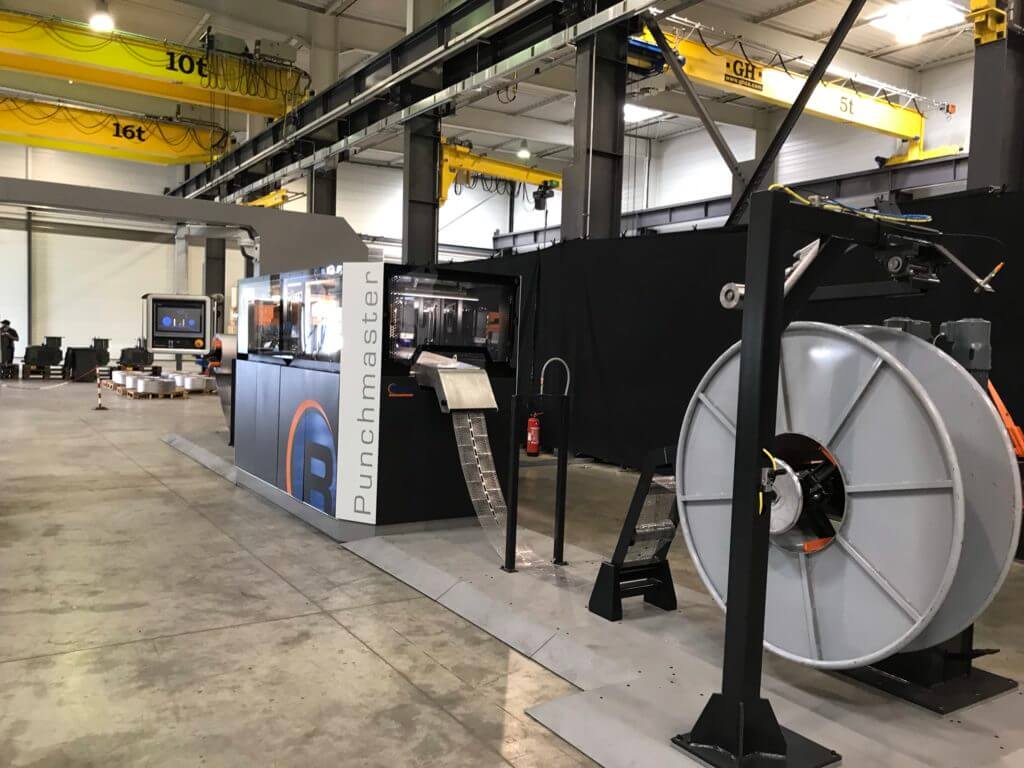

The line includes (refer to layout PM LO 001A):

Jib cranes for loading and unloading strip and punched coils.

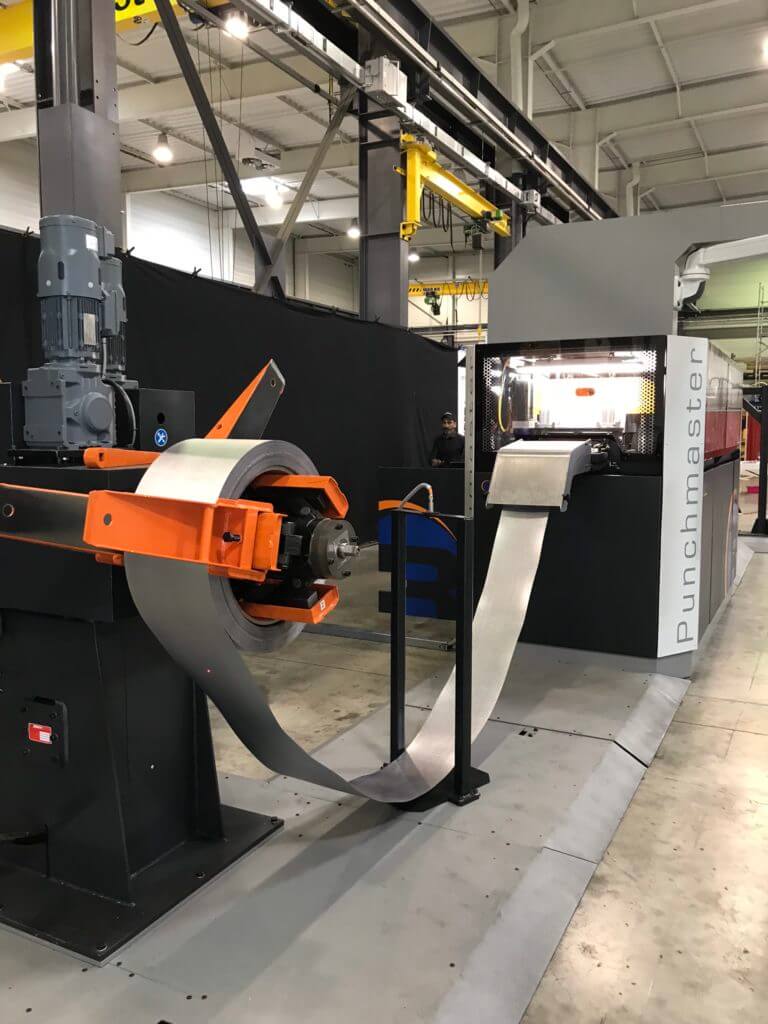

A vertical double decoiler designed for wide strip.

A hot joining strip welder.

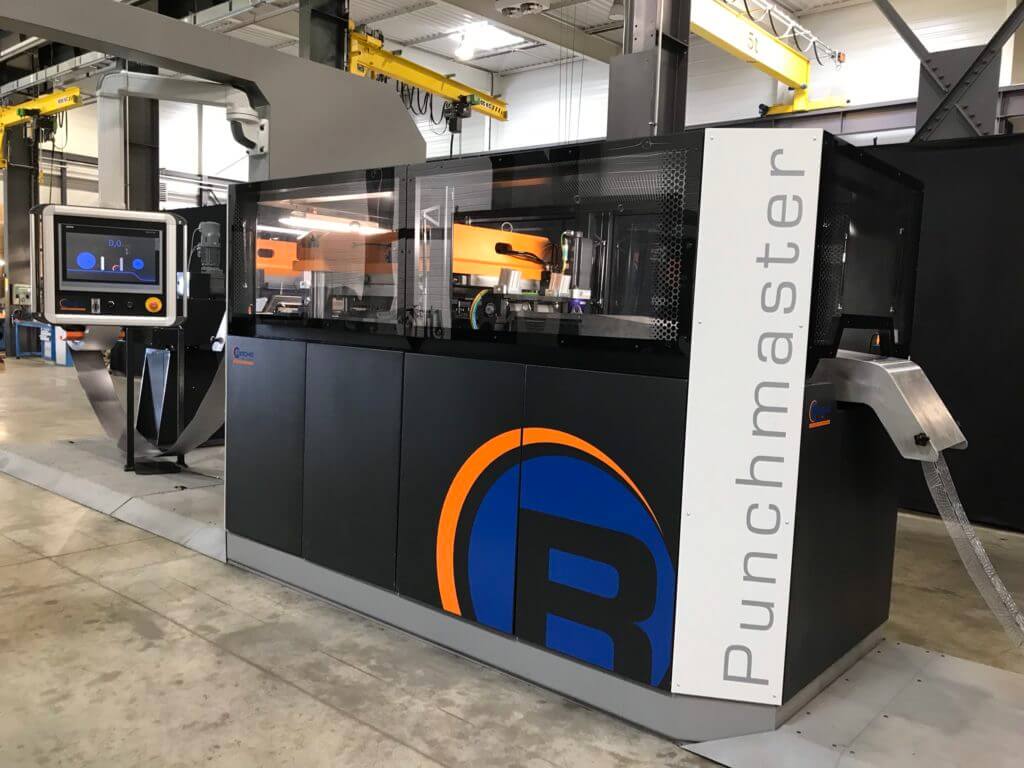

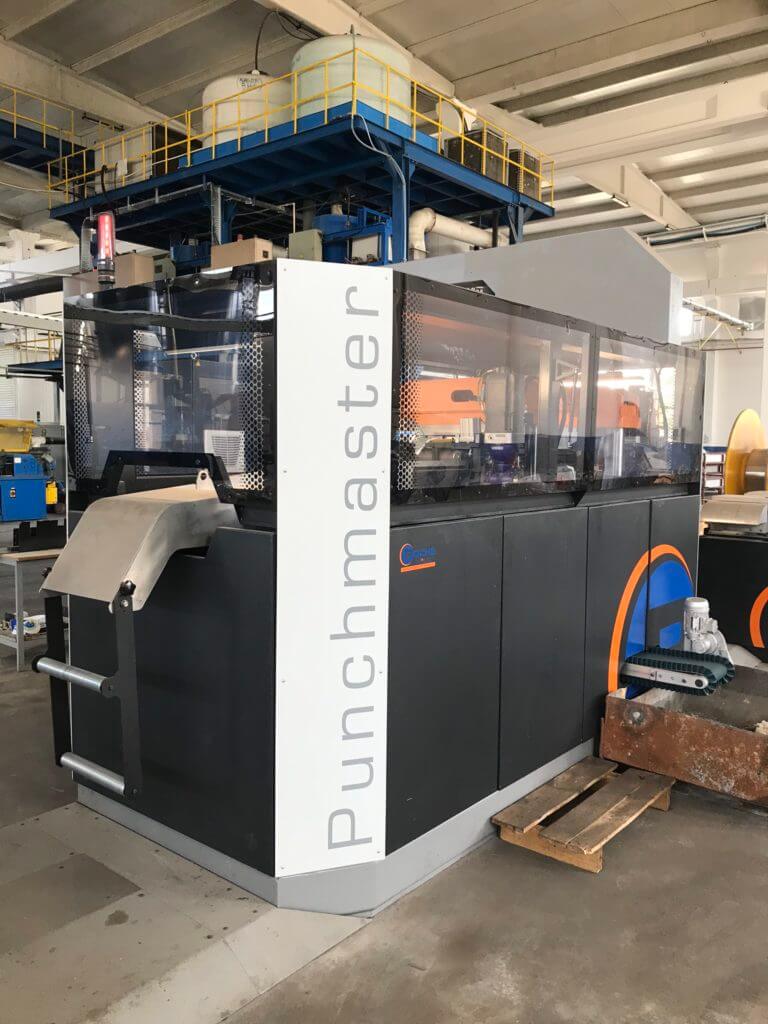

The PUNCHMASTER including strip feeder and sound enclosure.

Air cleaner.

A vertical double encoiler for punched strip.

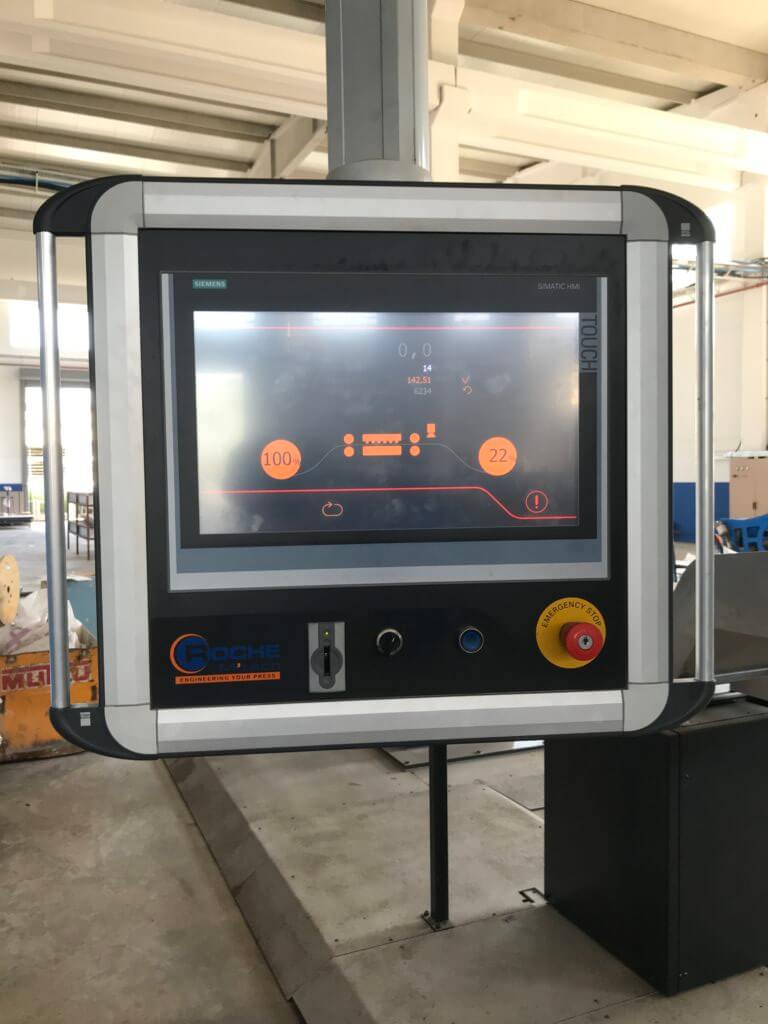

System loop controllers.
